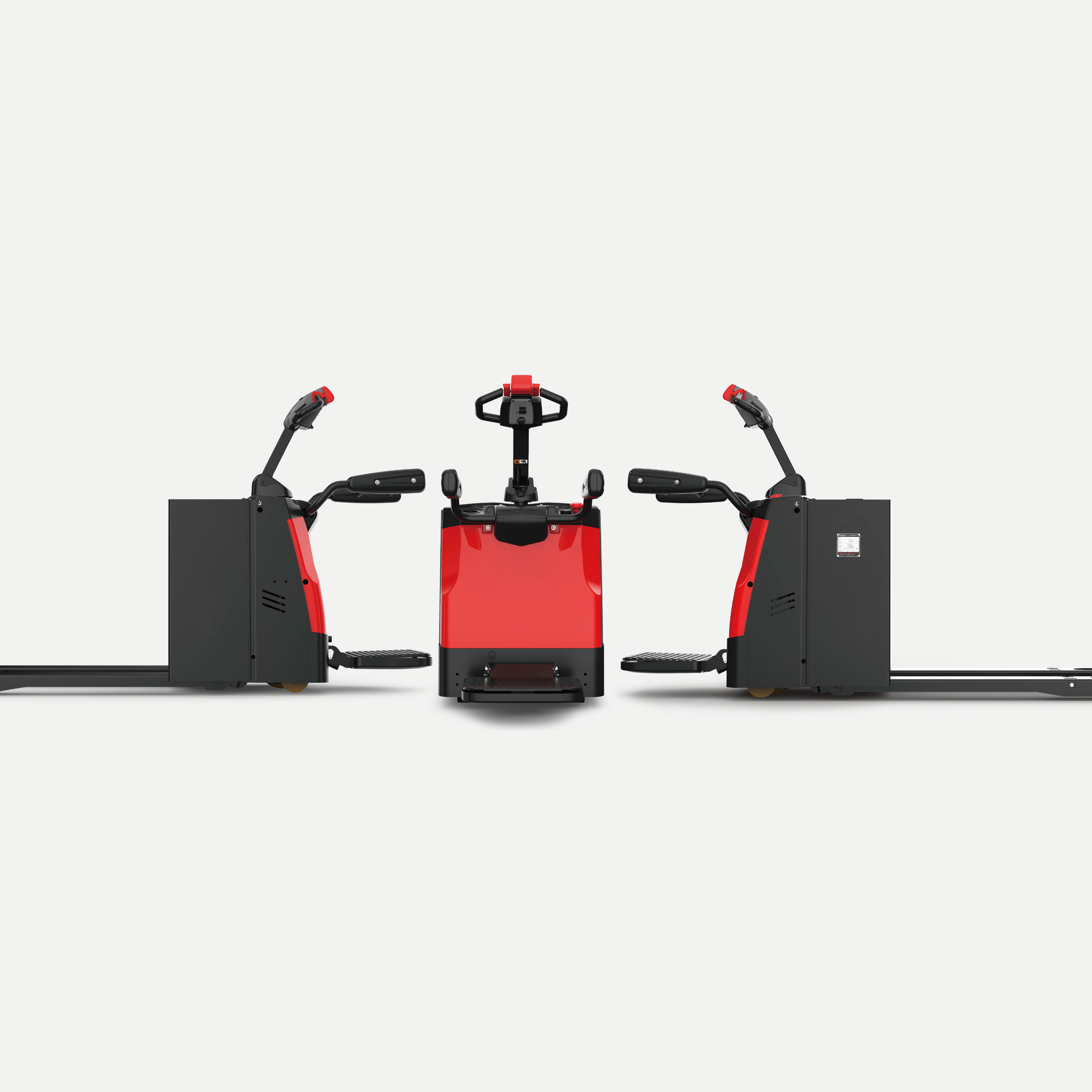

RPL Series is ideal for material transportation in the medium or long distance such as loading and unloading of goods in manufacturing factories, logistic warehouses, docks, retail stores, chemical industry, etc.
RPL Series can be used indoors in the warehouse and outside in loading bays where they can transfer pallets to and from the lorry.
| Specification | Details |
| Model： | RPL 201（H）/251/301 |
| Drive： | Electric |
| Operator type： | Standing |
| Load capacity： | 2000 kg /2500 kg/3000 kg |
| Load center distance: | 600 mm |
| Wheelbase： | 1531mm |
| Service weight： | 670 kg /802 kg / 802 kg |

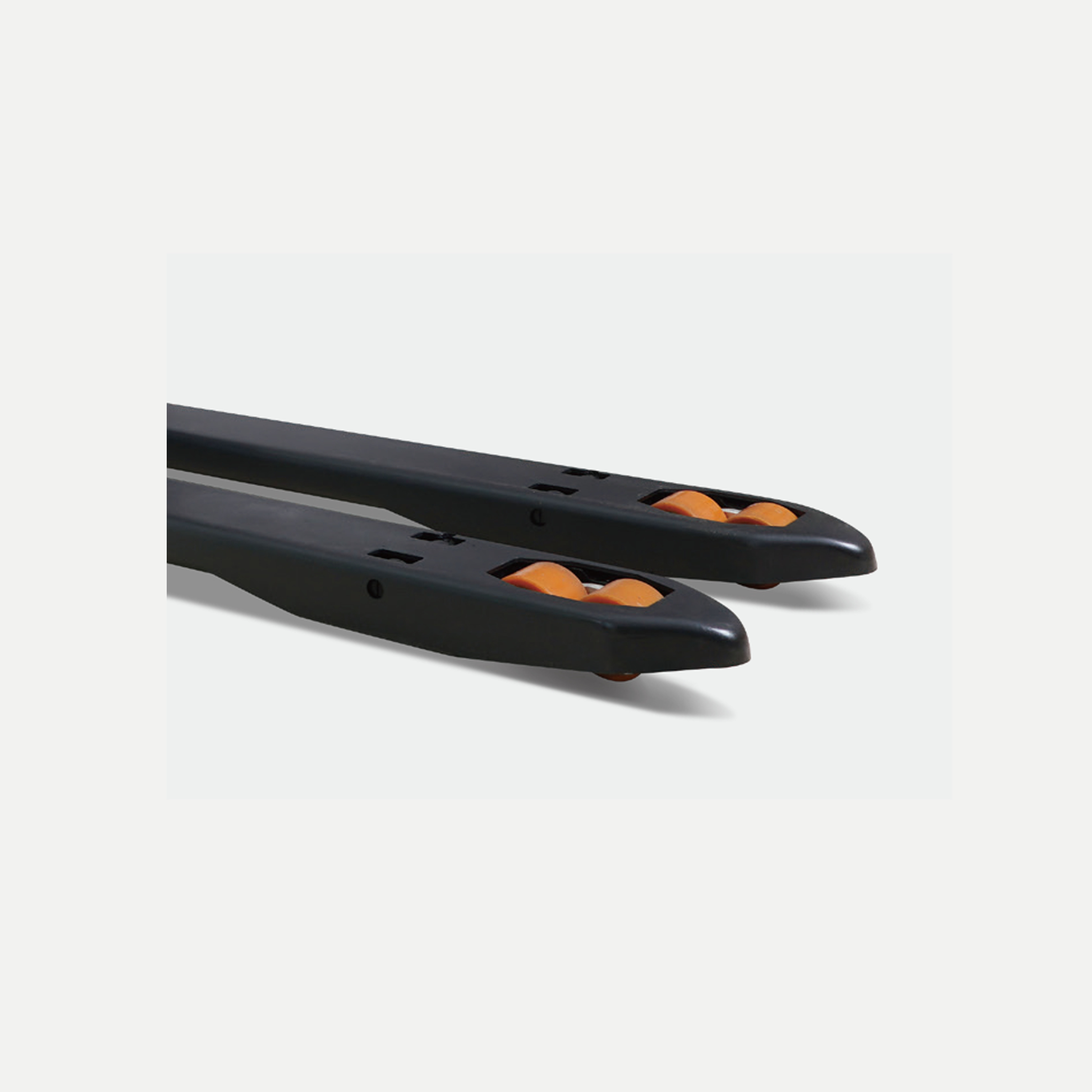

| Fork dimensions： |
55/ 170/1150 mm 55/ 190/1150 mm 55/ 190/1150 mm |
| L×W×H： | 1954×734×85 mm |
| Turning radius： | 1806 mm /1790 mm / 1790 mm |
| Max. gradeability | 8% / 6% / 6% |

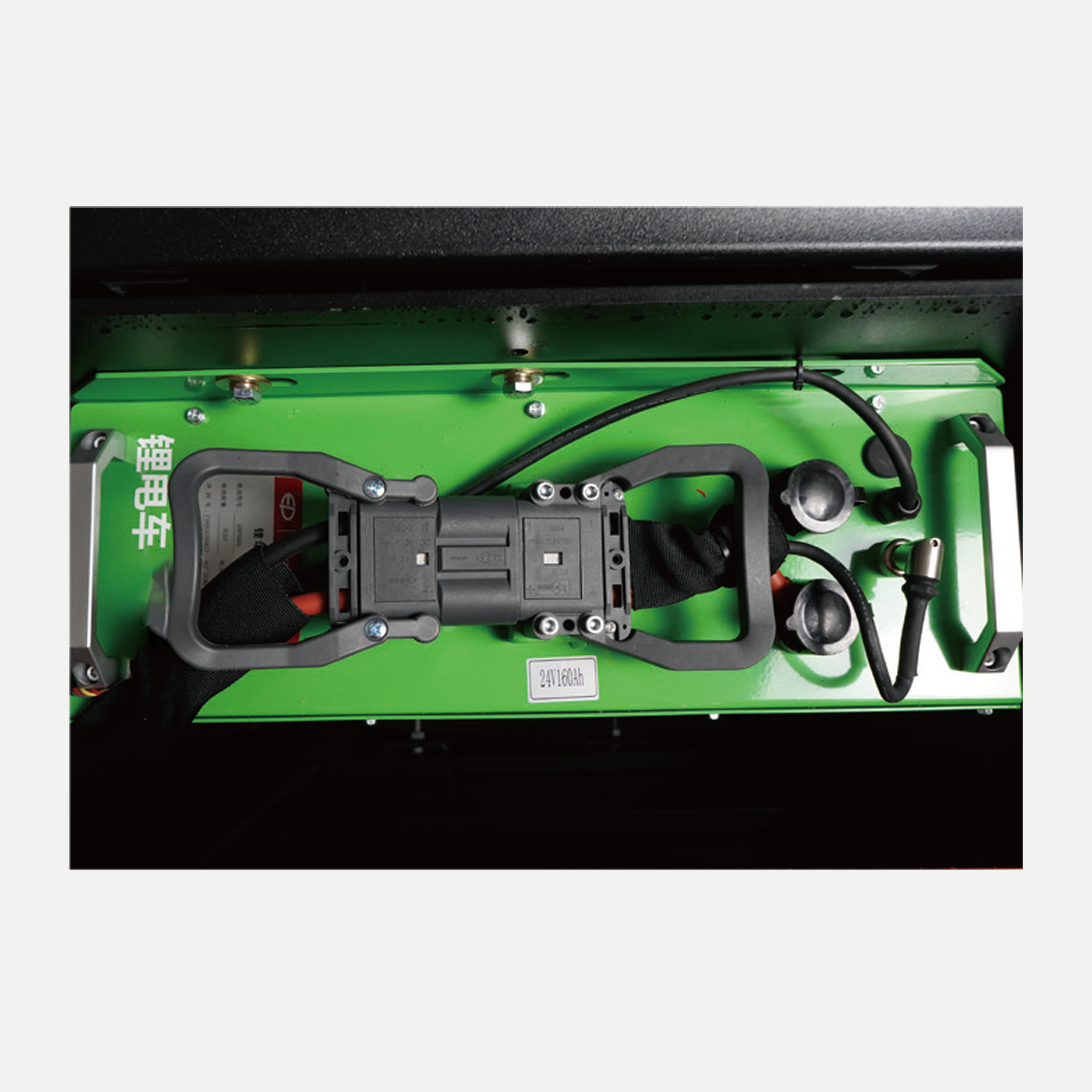

| Battery voltage/nominal capacity： | 24V /205Ah |
